FR4 Immersion Gold PCB Circuit Board Assembly Services Customized

Product Categories
Huaswin Electronics Co.,Limited
Contact Now

FR4 Immersion Gold PCB Circuit Board Assembly Services Customized

Brand Name : HUASWIN

Model Number : HSPCBA1009

Certification : ISO/UL/RoHS

Place of Origin : China

MOQ : 1 sets

Price : Negotiation

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10,000pcs per month

Delivery Time : 15-20 working days

Packaging Details : Anti-static bag + Anti-static bubble wrap + Good quality carton box

Contact Now

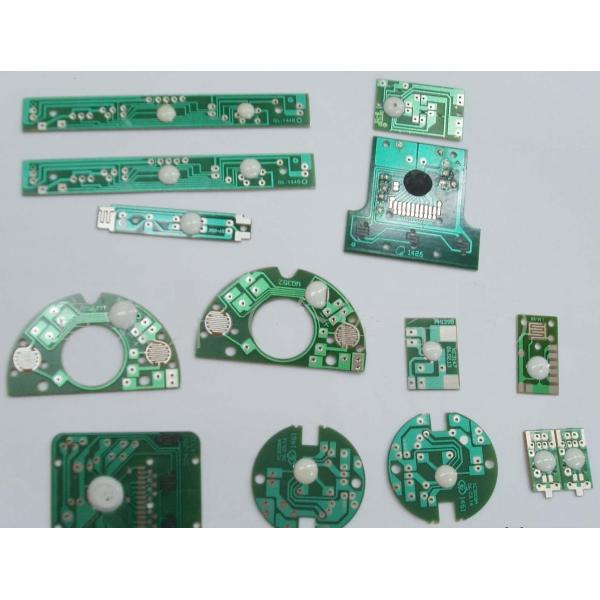

FR4 Immersion Gold PCB / Chip On Board Assembly with nice Epoxy Glop and high quality assured

Specifications:

1. PCB assembled chip on board
2. PCB prototype/PCB mass production and PCB assembly service
3. Competive Price and high quality

4, Surface Mount Technology

5. Through-Hole Assembly Technology

6. Convetional Leaded Technolgoy

7. Special Processes

8. RoHs

9. Inspection Methords

10. Conformal coating

11. Prompt and Superior Service

Detailed Specification of Pcb Assembly

1

Type of Assembly

SMT and Thru-hole

2

Solder Type

Water Soluble Solder Paste,Leaded and Lead-Free

3

Components

Passives Down to 0201 Size

BGA and VFBGA

Leadless Chip Carries/CSP

Double-Sided SMT Assembly

Fine Pitch to 08 Mils

BGA Repair and Reball

Part Removal and Replacement-Same Day Service

3

Bare Board Size

Smallest:0.25x0.25 Inches

Largest:20x20 Inches

4

File Formats

Bill of Materials

Gerber Files

Pick-N-Place File(XYRS)

5

Type of Service

Turn-Key,Partial Turn-Key or Consignment

6

Component Packaging

Cut Tape

Tube

Reels

Loose Parts

7

Turn Time

15 to 20 days

8

Testing

AOI inspection

X-Ray inspection

In-Circuit testing

Functional test

Quality Assurance:

ISO9001 and ISO/TS16949 management systems
Lean production system
ERP and PTS system support for management

Quality Processes:


1. IQC: Incoming Quality Control (Incoming Materials Inspection)
2. First Article Inspection (FAI) for every process
3. IPQC: In Process Quality Control
4. QC: 100% Test & Inspection
5. QA: Quality Assurance based on QC inspection again
6. Workmanship: IPC-A-610, ESD
7. Quality Management based on CQC, ISO9001:2008, ISO/TS16949

Testing:


AOI (Automatic optical inspection)
ICT(In-circuit test)
Reliability test
X-Ray Test
Analogue and digital function test
Firmware programming
